Description
Outdoor/Mast Head Diplexer to combine or separate FM/DAB (85 to 240 MHz) and TV (470 to 860 MHz).
Power pass Combined to UHF.
The unit is screened and its weatherproof enclosure means it can be mounted outside if required.
Quoted through loss approx 0.5dB
See article on Diplexers.

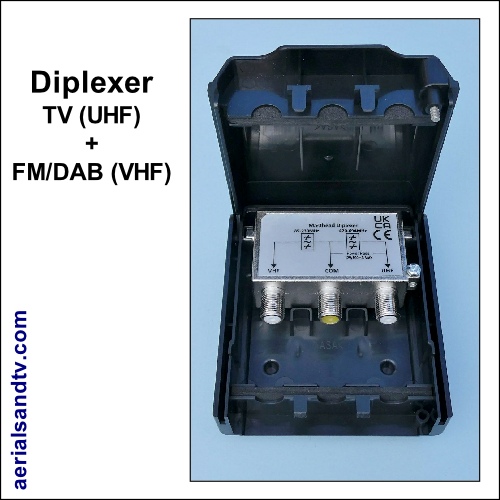

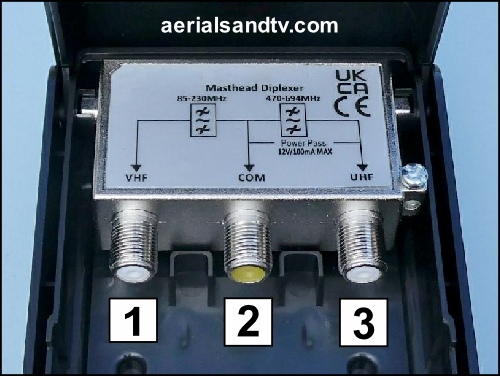

1 – VHF/DAB + FM input (or output) at 88 to 240MHz (loss approx 1dB)
2 – Combined output (or input), with power pass
3 – UHF/TV input (or output) at 470 to 862MHz (loss approx 1dB), with power pass

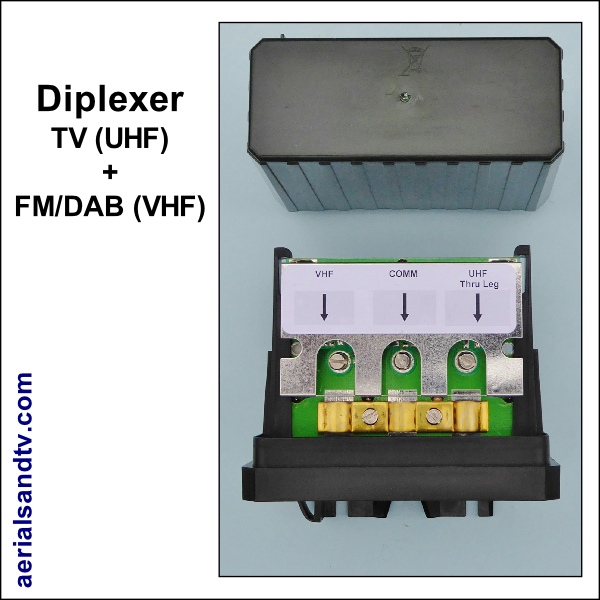

(The top cover is removed in the picture of the product)
